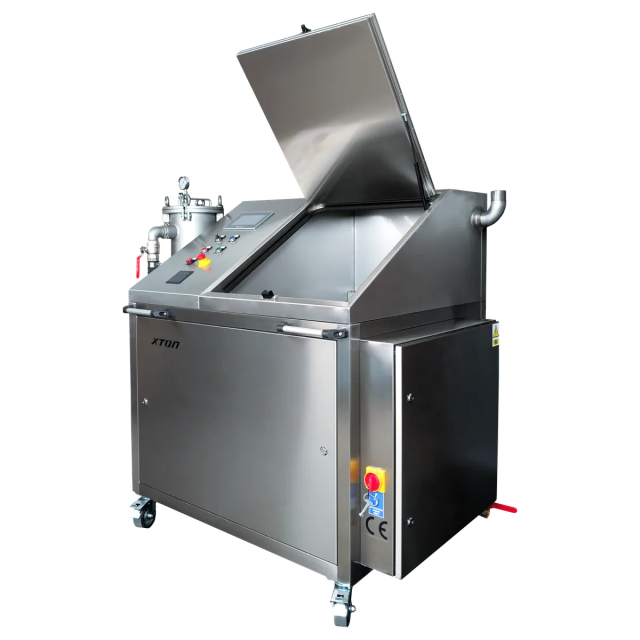

EGR Master Flash™
A professional stainless-steel machine for the cleaning and regeneration of EGR coolers, without removing the component from the vehicle.
EGR Master Flash™ is a professional stainless-steel machine designed for the cleaning and regeneration of EGR coolers. Over time, accumulated soot, carbon deposits and oil residue reduce the efficiency of the EGR system and may eventually lead to engine failure.
The advanced technological solutions used in the machine enable effective removal of contaminants without the need to remove the component from the vehicle. The machine has been designed for both stationary and mobile operation, provided that the workstation is appropriately equipped.
Manufacturer's warranty: 12 months
Equipment
- adjustable regeneration operating pressure from 1 to 10 bar
- 2-stage filtration with a filtration grade of 5–1000 µm
- filtration pump flow rate of up to 250 l/min
- drying at temperatures of up to 60 °C
- Camlock 2" working connection
- temperature and pressure sensors with emergency stop
- IP54 protection rating
- consumables package — set of filters + XPOWER™
Technical parameters
| Weight | 350 kg |
|---|---|
| External dimensions | 170 × 106 × 155 cm |
| Chamber dimensions | 69 × 90 × 144 cm |
| Heated liquid tank | 200 l |
| Liquid temperature | up to 70 °C |
| Ambient temperature | 5–35 °C |
| Maximum power | 7.5 kW |
| Operating noise level | up to 70 dB |
| Supply voltage | 3 × 400 V |
| Frequency | 50 Hz |
| Overcurrent protection | C 20 A |
| Working pressure | 8–10 bar (116–145 psi) |
| Air connection | DN7.2 pneumatic quick coupling (male) |
| Air demand | 300–1,000 l/min |
| Water connection (inlet) | 1/2" |
| Water connection (drain) | 6/4" |
| Pressure hose diameter | 6/4" |
| Camlock working connection diameter | 2" |
| Regeneration operating pressure | adjustable from 1 to 10 bar |
| Filtration pump flow rate | up to 250 l/min |
| Airflow | up to 390 m³/h |
| Filtration stages | 2 |
| Filtration grade | 5–1,000 µm |
| Drying temperature | up to 60 °C |
| Overpressure | up to 370 mbar |
| Safety features | temperature sensor, pressure sensor, emergency stop |
| IP protection rating | IP54 |
| Declaration of conformity | CE |
Also available in a Master Box™ bundle
This machine can be combined with other XTON® equipment in a Master Box™ bundle at a combined price. Contact us for details.

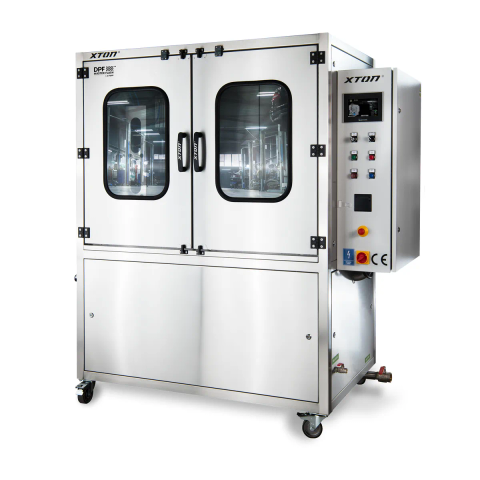

- + DPF Master Flash™ DUAL AI
